SZ720FM BBS

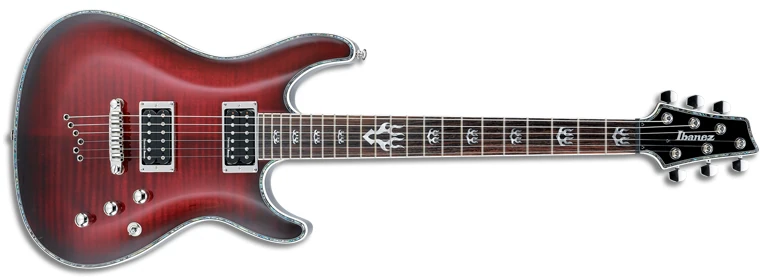

SZ720FM Blackberry Sunburst (more images) Red copyright sprite

The SZ720FM is an SZ series solid body electric guitar model introduced by Ibanez in 2004.

Features of the SZ720FM include a mahogany body with a flamed maple top and abalone binding mated to a set-in mahogany neck with a 22-fret bound rosewood fingerboard with special flame position markers. Components include dual humbucking pickups and a fixed bridge.

It was offered in 2004 with Ibanez SZ pickups, which were replaced for 2005 by the Seymour Duncan designed Duncan/Ibanez pickups specially made for the series.

The SZ720FM is similar to the SZ520QM, but has fancier inlays and abalone binding.

In 2008, all SZ models were discontinued in favor of the SZR520 and SZR720.

Specifications Edit

Specifications for SZ720FM
Name: SZ720FM
Years: 2004–2007
Areas: Japan / USA
Made in: Korea
Finishes: BBS (Blackberry Sunburst) 2006–2007 / DAS (Dark Amber Sunburst) 2006–2007 / TG (Transparent Gray) 2004–2007
Body
Body type:
Solid body
Body material:
Mahogany w/ flamed maple top & abalone binding
Neck joint:
Set-in
Bridge:
Gibraltar III fixed
Hardware color:
Nickel
Neck
Neck type:
SZ
Neck material:
3-piece mahogany
Scale length:
638mm/ 25.1"
Fingerboard:
Rosewood w/ binding
Inlays:
Special flames
Frets:
22 / large
Electronics
PU Config:
HH
Bridge PU:
2004: SZ2
2005–2007: Duncan/Ibanez
Neck PU:
2004: SZ1
2005–2007: Duncan/Ibanez
Controls:
2 volume / 1 tone / 3-way toggle

Images Edit

Other available finishes

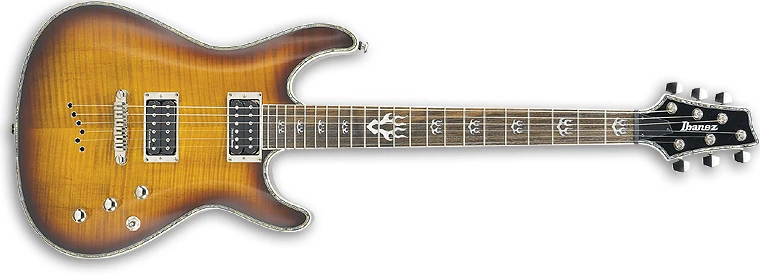

SZ720FM DAS
Dark Amber Sunburst

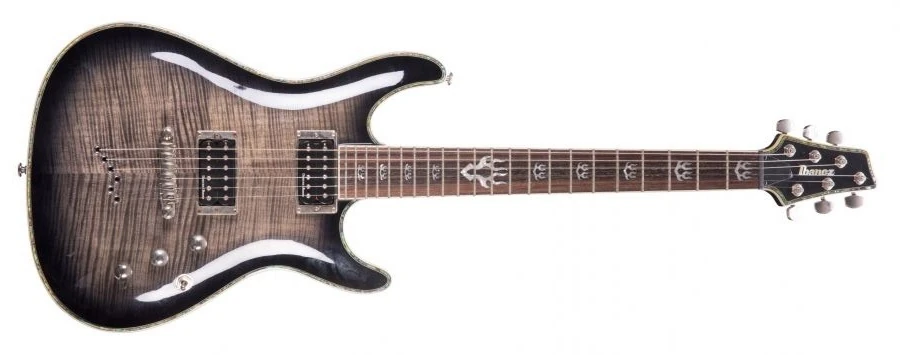

SZ720FM TG
Transparent Gray
