For the earlier model with the same name, see SA360FM (2011).
2017 SA360FM NTF 4L 01
SA360FM Natural Flat (more images) Red copyright sprite

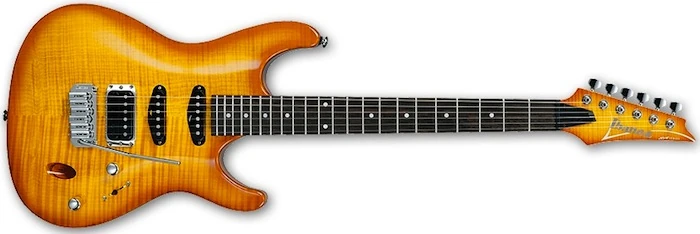

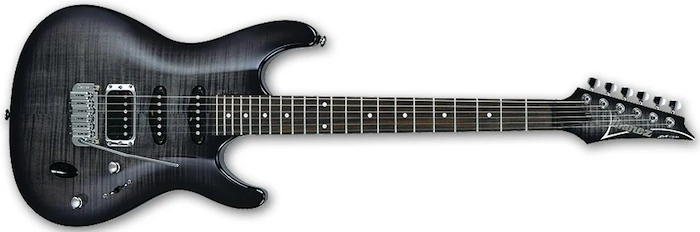

The SA360FM is an SA series solid body electric guitar model introduced by Ibanez in late 2017.

The SA360FM features a arched flamed maple top with abalone purfling and white binding a mahogany body bolted to a maple neck with a 22-fret treated New Zealand pine fingerboard with abalone dot position markers. Components include a SAT Pro II synchronized tremolo bridge and Ibanez pickups. The True Duo Bucker bridge pickup has a normal humbucking mode and a stacked (noiseless) single coil mode that is activated using the push-pull tone knob.

Similar models include the SA360QM with a quilted maple top, the SA360AH with an ash top and the SA360 with a solid mahogany body.

The SA360FM is offered only in Europe.

Specifications

Specifications for SA360FM
Model name: SA360FM
Year(s) produced: 2017
Sold in: Europe
Made in: China
Finish(es): Natural Flat (NTF)
Body
Body type:
Solid body
Body material:
Mahogany w/ flamed maple top w/ abalone purfling & white binding
Neck joint:
Bolt-on
Bridge:
SAT Pro II tremolo
Hardware color:
Chrome
Neck
Neck type:
SA
Neck material:
3-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Treated New Zealand pine
Fingerboard inlays:
Abalone dot
Frets:
22 / medium
Electronics/ Strings
Pickup configuration:
HSS
Bridge pickup:
Ibanez True Duo Bucker (H) passive/ ceramic, alnico
Middle pickup:
Quantum (S) passive/ alnico
Neck pickup:
Ibanez Quantum (S) passive/ alnico
Controls:
1 volume / 1 tone / 5-way lever / push/pull coil-split on tone
String gauge (factory):
.009–.042
