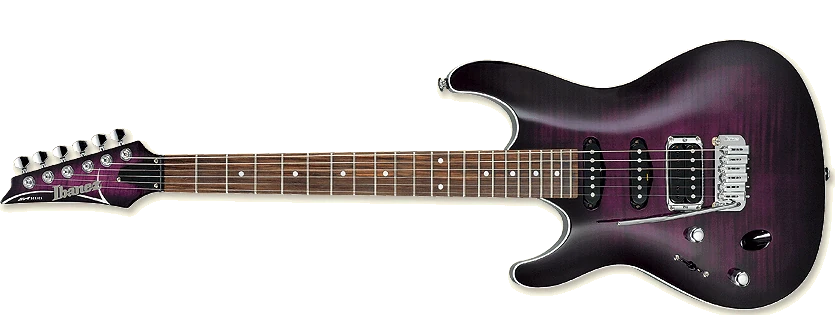

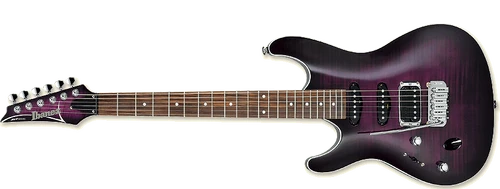

SA260FML TLB
SA260FML TLB (more images) Red copyright sprite

The Ibanez SA260FML is a SA series guitar model introduced in 2005 as the left-handed version of the SA260FM. Like the right-handed model, the SA260FML has gone through several changes in terms of specifications, although the basics remained the same, including the flamed maple top, synchronized tremolo and Ibanez made pickups in SSH configuration.

Specifications

Specifications for SA260FML
Name: SA260FML
Years: 2005, 2007–2011
Areas: Worldwide
Made in: Korea / Indonesia / China
Finishes: TG (Transparent Gray) (2005) / TLB (Transparent Lavender Burst) (2007–2011)
Body
Body material:
Mahogany w/ bound flamed maple top
Neck joint:
Bolt-on
Bridge:
2005: SAT30S tremolo
2007: SAT Pro tremolo
2008–2011: SAT Pro II tremolo
Hardware color:
Satin Chrome / Chrome
Neck
Neck type:
SA
Neck material:
3-piece maple
Fingerboard:
Rosewood
Inlays:
Dots
Frets:
2005: 22 / jumbo
2007–2011: 22 / medium
Electronics
PU Config:
SSH
Bridge PU:
2005: AH4 (Axis Humbucker 4)
2007–2011: True Duo Bucker
Mid PU:
2005: AS2 (Axis Single 2)
2007–2011: AHS2 (Axis Single 2)
Neck PU:
2005: AS2 (Axis Single 2)
2007–2011: AHS1 (Axis Single 1)
Controls:
2005: 1 volume / 1 tone / 5-way lever
2007–2011: 1 volume / 1 tone (with coil tap) / 5-way lever

Images

Other available finishes

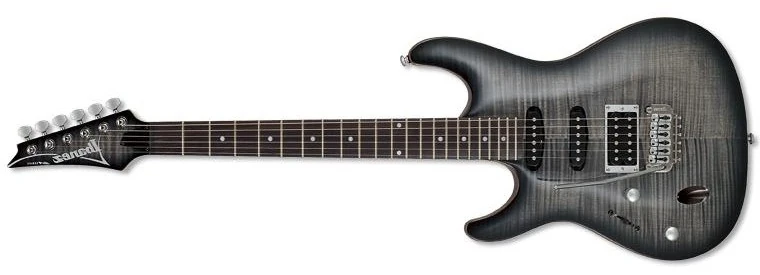

SA260FML TG
SA260FML TG
