The Ibanez SA160 is an SA electric guitar model featuring a full mahogany body with an SSH pickup configuration and a synchronized tremolo. Introduced in 2000, production halted in 2005, but the SA160 returned in 2008 to be discontinued again within the year.

2000-2005Edit

Specifications (2000-2005)Edit

Speclist (2000-2005)

Name: SA160

Years: 2000-2005

Areas: EU/JP/US

Made in: Korea

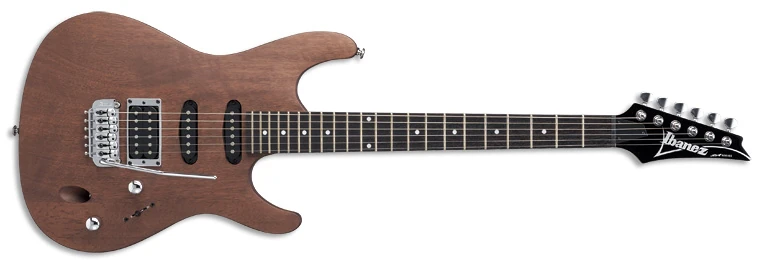

Finishes: BK (Black) / CA (Candy Apple) (2001-2004) / MG [2] (Metallic Grape) (2000-2004) / NY (Noble Gray) (2002-2004) / RB [2] (Royal Blue) (2002-2004) / WBR (Weathered Brown) (2004-2005)

Body

Body material:
Mahogany

Neck joint:
Bolt-on

Bridge:
2000: TZ30
2001-2005: SAT30 tremolo

Hardware color:
Chrome

Pickguard:
none

Neck

Neck type:
SA

Neck material:
2000_2004: 1-Piece Maple
2005: 3-Piece Maple

Fingerboard:
Rosewood

Inlays:
Dots

Frets:
22 / Medium

Electronics

PU Config:
SSH

Neck PU:
2000: PSNDS (Powersound Single)
2001-2005: AS2 (Axis Single 2)

Mid PU:
2000: PSNDS (Powersound Single)
2001-2005: AS2 (Axis Single 2)

Bridge PU:
2000: PSND2 (Powersound 2)
2001-2005: AH4 (Axis Humbucker 4)

Controls:
1 Volume / 1 Tone / 5 Way lever

About this table

Portal: Guitar models

Images (2000-2005)Edit

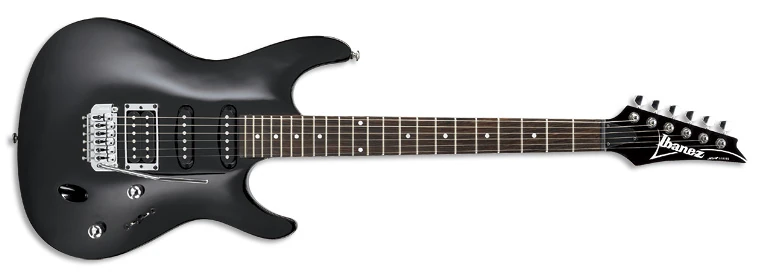

SA160 BK (2005) Added by Brambram	SA160 CA Added by Brambram	SA160 MG (2000) Added by Brambram
SA160 RB Added by Brambram	SA160 NY Added by Brambram

2008Edit

A couple changes were made to the 2008 SA160 model, including a new set of pickups, a new tremolo and a multipiece neck.

Specifications (2008)Edit

Speclist (2008)

Name: SA160

Years: 2008

Areas: EU/JP/US

Made in: China

Finishes: BK (Black) / BS (Brown Sunburst)

Body

Body material:
Mahogany

Neck joint:
Bolt-on

Bridge:
SAT Pro II tremolo

Hardware color:
Chrome

Pickguard:
none

Neck

Neck type:
SA

Neck material:
3-Piece Maple

Fingerboard:
Rosewood

Inlays:
Dots

Frets:
22 / Medium

Electronics

PU Config:
SSH

Neck PU:
AHS1 (Axis Single 1)

Mid PU:
AHS2 (Axis Single 2)

Bridge PU:
AH1 (Axis Humbucker 1)

Controls:
1 Volume / 1 Tone / 5-Way Lever

About this table

Portal: Guitar models

Images (2008)Edit

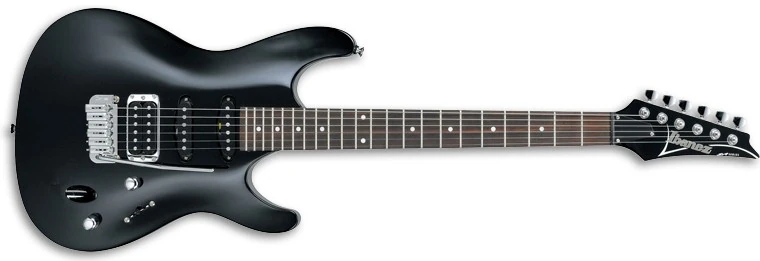

SA160 BK

Added by Brambram

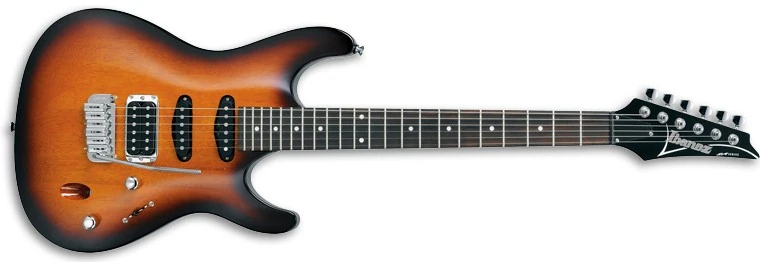

SA160 BS

Added by Brambram
