S670FM ATF

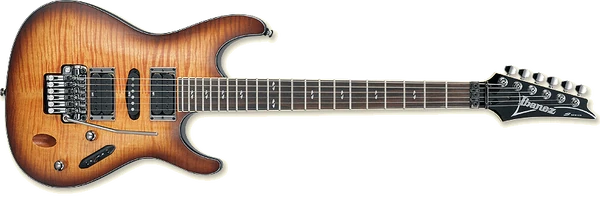

S670FM in Antique Burst Flat (more images) Red copyright sprite

The S670FM is an S series solid body electric guitar model introduced by Ibanez in 2007. Features include a mahogany body with a flamed maple top, Ibanez Infinity pickups and the ZR tremolo.

For 2010, the S670FM was discontinued and replaced with the S770FM. The S770FM is almost identical to the S670FM in features and appearance, except that it has 24 frets instead of 22 and a new style of inlays.

The Transparent Gray Flat finish was only available for a short period of time in Japan. A more 'extreme' version was released in the US as the S620EXQM. Other similar models were issued as the S670PB and S670SE.

Specifications

Specifications for S670FM
Model name: S670FM
Year(s) produced: 2007–2009
Sold in: Worldwide (except the USA)
Made in: Korea (2007–2008) / Indonesia
Finish(es): ATF (Antique Burst Flat) / TGT (Transparent Gray Flat)
Body
Body type:
Solid body
Body material:
Mahogany with flamed maple top
Neck joint:
AANJ
Bridge:
ZR tremolo with ZPS2
Hardware color:
Cosmo black
Neck
Neck type:
Wizard II
Neck material:
3-piece maple
Fingerboard material:
Bound rosewood
Fingerboard inlays:
Oval
Frets:
22 / jumbo
Electronics
Pickup configuration:
HSH
Bridge pickup:
INF2 (Infinity 2)
Middle pickup:
INFS1 (Infinity Single 1)
Neck pickup:
INF1 (Infinity 1)
Controls:
1 volume / 1 tone / 5-way lever

Images

S670FM TGT
S670FM in Transparent Gray Flat Red copyright sprite
