This page is about the S470 (1995–2001). For other S470 models, see S470.

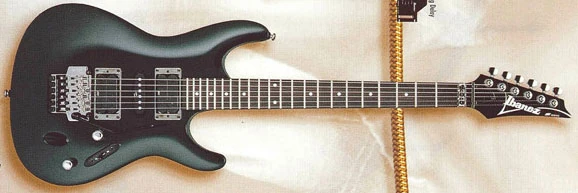

S470 95 MD
S470 BK (1995) (more images) Red copyright sprite

The S470 is an S series solid body guitar model introduced by Ibanez in 1995. It is an affordable S model, made in Korea, with the Lo-TRS II tremolo and Ibanez made Axis pickups. It replaced the Japanese made identically named model for the US market. Outside the US, the Japanese S470 was still available.

The S470 was discontinued after 2001, but returned in 2003 -see S470 (2003–2009), again Korean made, but otherwise completely revised. It was available left-handed as the S470L.

SpecificationsEdit

Specifications for S470 (1995–2001)
Name: S470
Years: 1995–2001
Areas: USA
Made in: Korea
Finishes: BK (Black) / JB (Jewel Blue) / MD (Mediterranean Green) / VK (Vampire Kiss)
Body
Body material:
Mahogany
Neck joint:
AANJ
Bridge:
Lo-TRS II
Hardware color:
Cosmo Black
Neck
Neck type:
Wizard II
Neck material:
1-piece maple
Fingerboard:
Rosewood
Inlays:
Pearl dot
Frets:
22 / jumbo
Electronics
PU Config:
HSH
Neck PU:
AH1 (Axis Humbucker 1)
Mid PU:
AS1 (Axis Single 1)
Bridge PU:
AH2 (Axis Humbucker 2)
Controls:
1 volume / 1 tone / 5-way lever

ImagesEdit

Other available finishes

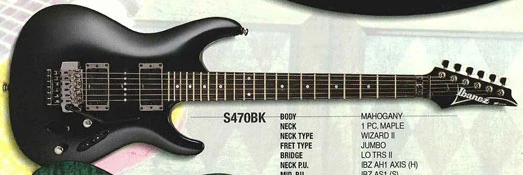

S470 95 BK
S470 BK (1995)
