RGA72TQM TGB
RGA72TQM Transparent Gray Burst (more images) Red copyright sprite

The RGA72TQM is an RGA series solid body electric guitar model introduced by Ibanez in 2010.

The RGA72TQM features a mahogany body with a quilted maple top mated to a set-in titanium-reinforced maple neck with a 24-fret bound rosewood fingerboard with sharks fin/ wave position markers. Components include dual, covered Ibanez LoZ active humbucking pickups and an Edge III double locking tremolo bridge. A special feature is the active EQ switch which activates a mid-cut.

The RGA72QM is a similar model with a fixed bridge.

The RGA72TQM was replaced for 2011 with the RGA72TQMZ which has the new Edge Zero II tremolo.

Specifications

Specifications for RGA72TQM
Model name: RGA72TQM
Year(s) produced: 2010
Sold in: Worldwide
Made in: Indonesia
Finish(es): BBS (Blackberry Sunburst) / TGB (Transparent Gray Burst)
Body
Body type:
Solid body
Body material:
Mahogany w/ quilted maple top w/ binding
Neck joint:
Set-in
Bridge:
Edge III tremolo
Hardware color:
Cosmo black
Neck
Neck type:
Wizard II
Neck material:
3-piece maple w/ KTS titanium rod
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Shark fin/ wave
Frets:
24 / jumbo
Electronics
Pickup configuration:
HH
Bridge pickup:
Ibanez LoZ3-B active
Neck pickup:
Ibanez LoZ3-N active
Controls:
Master volume / Active EQ toggle / 3-way lever

Active EQ

Active EQ Toggle

The RGA72TQM features an Active EQ controlled with an on/off toggle switch. This EQ allows a bass/treble boost while cuttings mid frequencies.

Images

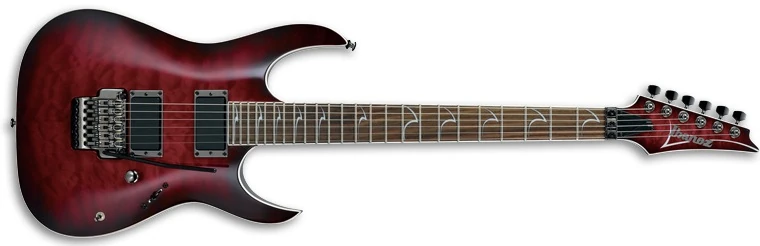

RGA72TQM BBS
RGA72QM Blackberry Sunburst Red copyright sprite
