RG565 LB

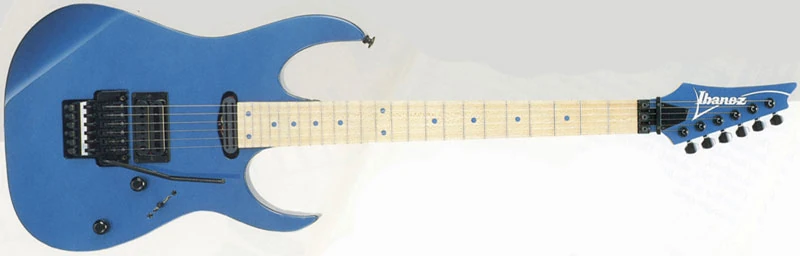

RG565 Laser Blue (more images) Red copyright sprite

The RG565 is an RG series solid body electric guitar model introduced by Ibanez in 1991. It was made in Japan by FujiGen.

The RG565 features a basswood body bolted to a maple neck with a reverse headstock and a 24-fret maple fretboard with dot position markers which match the body color. Components include a pair of Ibanez pickups with a rails-sytle single-coil sized humbucking pickup at the neck and a traditional humbucker in the bridge position, a double locking tremolo bridge and Gotoh tuning machines. For 1992 the Edge tremolo was replaced by the Lo-Pro Edge and the neck was now quartersawn.

The RG565R is a very limited spot model which preceded the RG565 as a sort of prototype; the RG565R had a rosewood fretboard with sharktooth position markers (similar to the RG7xx series models), but was otherwise similar. The RGR465M is a related model introduced in 2009. The RG3XXV was a sort of tribute to the RG565 which was produced as part of the 25th Anniversary Series in 2012.

The RG565 was discontinued after 1992.

Specifications

Specifications for RG565
Model name: RG565
Year(s) produced: 1991–1992
Sold in: Worldwide
Made in: Japan
Finish(es): Black (BK) 1991 / Candy Apple (CA) / Emerald Green (EG) 1992 / Laser Blue (LB)
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
Tilt Joint
Bridge:
1991: Edge tremolo
1992: Lo-Pro Edge tremolo
Hardware color:
Black
Neck
Neck type:
Wizard
Neck material:
1991: 1-piece maple
1992: 1-piece quartersawn maple
Scale length:
648mm/ 25½"
Fingerboard material:
Maple
Fingerboard inlays:
Color-matched dot
Frets:
24 / jumbo
Nut:
Top-Lok III
Machine heads:
Gotoh SG38
Electronics
Pickup configuration:
HS (single-coil sized humbucker in neck position)
Bridge pickup:
Ibanez HB2 (H)
Neck pickup:
Ibanez SB1
Controls:
Master volume / master tone / 5-way lever

Images

Other available finishes

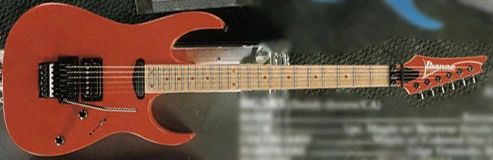

RG565 CA
RG565 Candy Apple
RG565 EG
RG565 Emerald Green
Wimage An image for this article is missing!
An image of the RG565 BK is wanted for this article. You can help by finding, uploading and adding it!
