For the RG1570 with an Edge Zero tremolo, see RG1570Z.

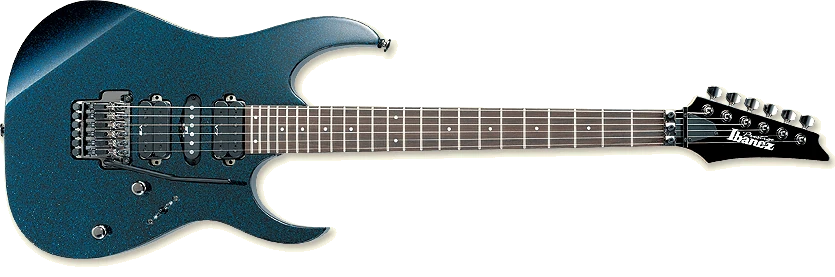

RG1570 MRB
RG1570 Mirage Blue (more images) Red copyright sprite

The RG1570 is an RG series solid body electric guitar model introduced by Ibanez in 2003. It is made in Japan by FujiGen as part of the Prestige line.

The RG1570 replaced the classic RG570 which was introduced in 1989. The key difference from the RG570 is the new Edge Pro tremolo, replacing the original Edge.

The RG1570 features a basswood body bolted to a laminated neck with a 24-fret rosewood fingerboard with dot position markers. Components include Ibanez pickups with a pair of humbuckers flanking a single-coil, an Edge Pro double locking tremolo bridge with a locking nut and Gotoh tuning machines.

In 2005, the RG1570 was revised with a five-piece neck and new neck profile and some visual updates like hardware color and inlays.

In 2006 and 2007 an identical model was sold as the RG1570E. This was a spot model which didn't appear in any catalogs. It had identical specs to the regular RG1570 model, but was available in black, which was not a finish color available for the RG1570 in those years.

2006 RG1570E BK
2006 - 2007 Ibanez RG1570E BK ( Spot model ) Red copyright sprite

The RG1570L is the left-handed version and the RGR1570 is an RG1570 with a reverse headstock. A slightly upscale model is the RG2570EX and its successors. A special version with a swirled finish was offered in 2005 as the RG20051. The RGSP3 is a similar special model with wedge sharktooth inlays; the RGSP1 and RGSP2 are special models with a maple fretboard with wedge sharktooth inlays.

The RG1570 was replaced for 2010 with the RG1570Z with the new Edge Zero tremolo.

Specifications[]

Related content: Prestige series | RG series | Models-icon
Specifications for RG1570 / RG1570E
Model name: RG1570 / RG1570E
Year(s) offered: 2003–2009
Sold in: Worldwide
Made in: Japan
Finish(es): Black (BK) 2003–2004, 2006–2007 (as RG1570E), 2009 / Candy Apple (CA) 2009 / Cosmic Blue (CB) 2003–2004, 2008 / Galaxy Black (GK) 2008 / Gray Nickel (GN) 2003–2004 / Mirage Blue (MRB) 2005–2009 / Mirage Red (MRR) 2005–2007 / Royal Blue (RB) 2003–2004 / Suede Black (SDB) 2007–2008 / Suede Red (SER) 2008 / Zinc Blue (ZB) 2004
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
AANJ
Bridge:
Edge Pro tremolo (10.8mm string spacing)
Hardware color:
2003–2004: Powder cosmo
2005–2009: Cosmo black
Neck
Neck type:
2003–2004: Super Wizard Prestige
2005–2009: Wizard Prestige
Neck material:
2003–2004: 3-piece maple
2005–2009: 5-piece maple/ walnut
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
2003–2004: Pearl dot
2005–2009: Small pearl dot
Frets:
24 / jumbo
Nut:
Top-Lok III
Machine heads:
Gotoh SG381
Electronics/ Strings
Pickup configuration:
HSH
Bridge pickup:
Ibanez V8 (H)
Middle pickup:
Ibanez S1 (S)
Neck pickup:
Ibanez V7 (H)
Controls:
Master volume / master tone / 5-way lever pickup selector
Output jack:
¼" stereo barrel (side mounted)
String gauge (factory):
.009/.011/.016/.024/.032/.042

RG1570 vs. RG1570Z[]

Main article: Z

Production of the RG1570 was officially ended in 2009 in favor of the new RG1570Z introduced in 2010, featuring the Edge Zero tremolo. In the USA however, both the Edge Pro-equipped models and the new models are listed as the RG1570. As of 2011, the RG1570Z is still listed as the RG1570 on the US website and in the US catalogs.

Images[]

Additional finishes/ details
2004 RG1570 BK
Black 2003–2004
RG1570 BK (2009)
Black 2009

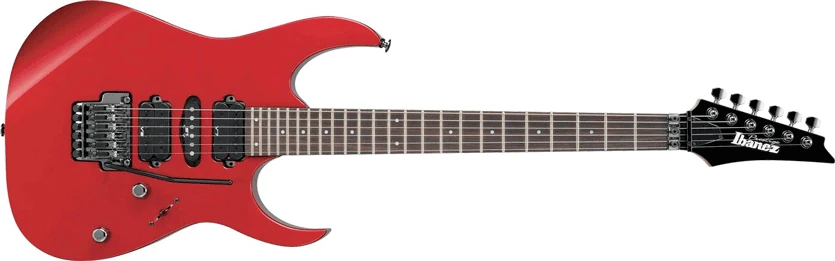

RG1570 CA
Candy Apple

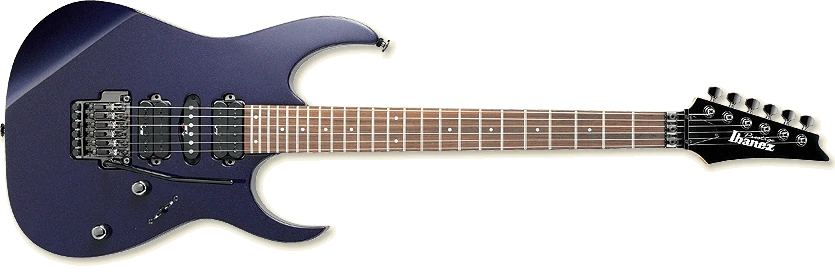

2004 RG1570 CB
Cosmic Blue

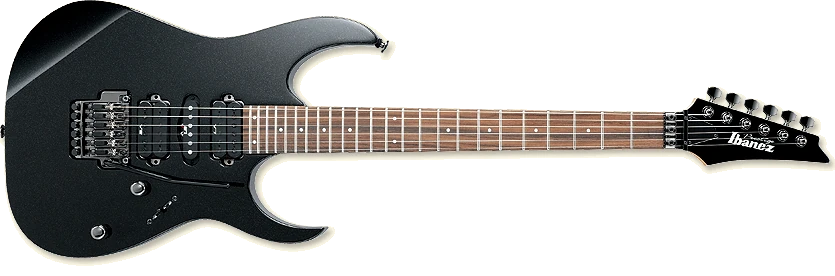

RG1570 GK
Galaxy Black
RG1570 GN
Gray Nickel

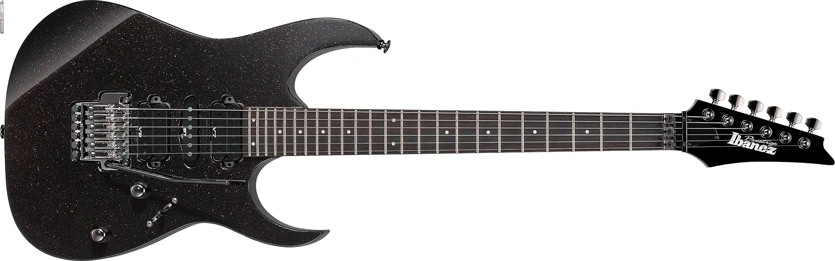

2006 RG1570 MRR
Mirage Red
2004 RG1570 RB
Royal Blue
2008 RG1570 SDB
Suede Black

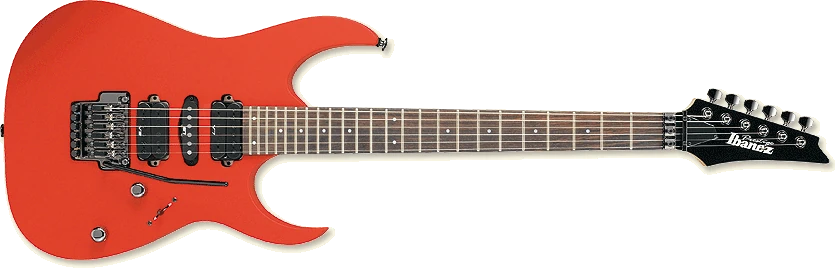

2008 RG1570 SER
Suede Red
2004 RG1570 ZB
Zinc Blue
HSH 5-way both-splits
Pickup switching diagram
Controls VT5
Control layout
