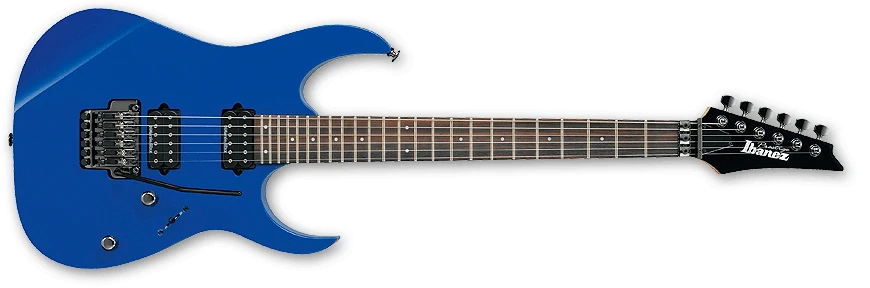

RG1520A PBL
RG1520A Phantom Blue (more images) Red copyright sprite

The RG1520A is an RG series solid body electric guitar model offered by Ibanez in mid-2009. It was made in Japan as part of the Prestige line and was part of a 2009 Limited Edition series which also included the RG1527M and RG2620Z for Europe.

The RG1520A features a basswood body bolted to a maple and walnut Wizard Prestige neck with a 24-fret rosewood fingerboard with small dot position markers. Components include dual DiMarzio/Ibanez humbucking pickups mounted directly to the body without pickup rings, an Edge Pro double locking tremolo bridge with a locking nut, and Gotoh tuning machines.

The RG1570 is a related model that adds a single coil pickup between the humbuckers. The RG1527 is a related seven-string model.

The RG1520 was a spot model which never appeared in a catalog. It was discontinued after 2011.

Specifications

Specifications for RG1520A
Name: RG1520A
Years: 2009–2011
Areas: Worldwide (excl. USA)
Made in: Japan
Finishes: PBL (Phantom Blue) / PPN (Poisoned Pumpkin)
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
AANJ
Bridge:
Edge Pro tremolo
Hardware color:
Cosmo black
Neck
Neck type:
Wizard Prestige
Neck material:
5-piece maple/ walnut
Fingerboard:
Rosewood
Inlays:
Small pearl dot
Frets:
24 / jumbo
Nut:
Top-Lok III
Machine heads:
Gotoh SG381 non-locking
Electronics
PU Config:
HH
Bridge PU:
DiMarzio IBZ RG (H)
Neck PU:
DiMarzio IBZ RG (H)
Controls:
1 volume / 1 tone / 5-way lever

Images

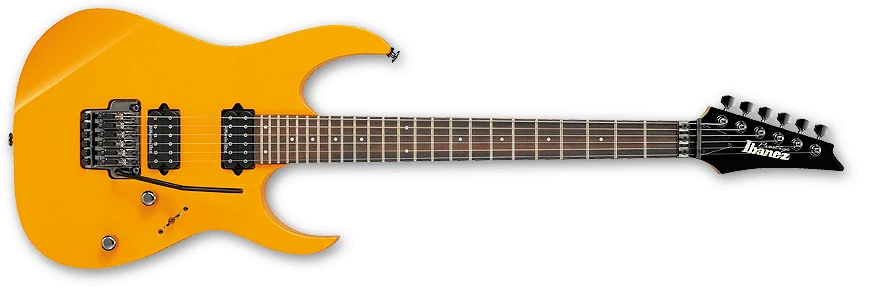

RG1520A PPN
RG1520A Poisoned Pumpkin Red copyright sprite

Sources

  • RG1520A, Key Music (retailer website), archived October 2016
