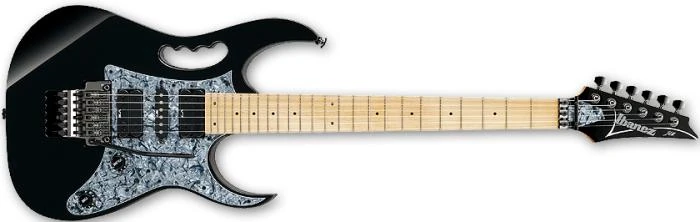

JEM505 BK
JEM505 BK (more images) Red copyright sprite

The Ibanez JEM505 is a JEM series electric guitar model and signature model of American guitarist Steve Vai, introduced in 2010. Like the JEM555, it is an affordable JEM model, but from a different point of view. Unlike the JEM555, the JEM505 is produced in Japan and has "Japanese made" features like a Prestige neck and an Edge tremolo, but it does not feature US made DiMarzio pickups like the JEM555 does.

Specifications

Specifications for JEM505
Model name: JEM505
Year(s) produced: 2010-2011
Sold in: Worldwide
Made in: Japan
Finish(es): BK (Black) / WH (White)
Body
Body material:
Basswood
Neck joint:
AANJ
Bridge:
Edge tremolo
Hardware color:
Cosmo Black
Pickguard:
BK: Grey Pearloid
WH: White Pearloid
Neck
Neck type:
JEM Prestige
Neck material:
5-Piece Maple/Walnut
Fingerboard material:
Maple
Fingerboard inlays:
Black Dots
Frets:
24 / W/6105
Electronics
Pickup configuration:
HSH
Bridge pickup:
IBZ V8 (Vintage 8)
Middle pickup:
IBZ S1 (Single 1)
Neck pickup:
IBZ V7 (Vintage 7)
Controls:
1 Volume / 1 Tone / 5-Way lever

Images

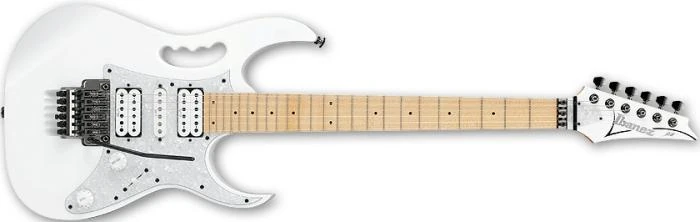

JEM505 WH
JEM505 WH Red copyright sprite
