GAX70

1,632pages on
this wiki
Talk1
GAX70 GSF
GAX70 Green Shadow Flat (more images) Red copyright sprite

The GAX70 is an AX series solid body electric guitar model introduced by Ibanez in 2000. It is part of the entry-level GIO line.

Multiple versions of this model were produced simultaneously for different markets so the components and specifications can vary even with a single model year. Common features of the GAX70 include dual Ibanez humbucking pickups, a fixed bridge and tailpiece combination and a bolt-on maple neck.

The GAX70L is a left-handed version.

Specifications Edit

Specifications for GAX70
Name: GAX70
Years: 2000–2009
Areas: Worldwide
Made in: China/ Indonesia
Finishes: BK (Black) / BKN (Black Night) / BT (Butterscotch Transparent) / GM (Gray Metallic) / GSF (Green Shadow Flat) / NM (Navy Metallic) / TR (Transparent Red) / WH (White)
Body
Body type:
Solid body
Body material:
Agathis or basswood
Neck joint:
Bolt-on
Bridge:
2000–2004: Full Tune II
2003–2009: Full Tune III
Tailpiece:
2000–2005: Quik Change III
2003–2005: Standard
2006–2009: Quik Change Mini
Hardware color:
Chrome
Neck
Neck type:
GAX
Neck material:
1-piece maple
Fingerboard:
Rosewood
Inlays:
Dot
Frets:
22 / medium
Electronics
PU Config:
HH
Neck PU:
2000–2009: PSND1
2003–2007: STD-H1
Bridge PU:
2003–2009: PSND2
2003–2007: STD-H2
Controls:
2 volume / 2 tone / 3-way toggle

Images Edit

Other available finishes
GAX70 BK
Black
GAX70 BKN
Black Night

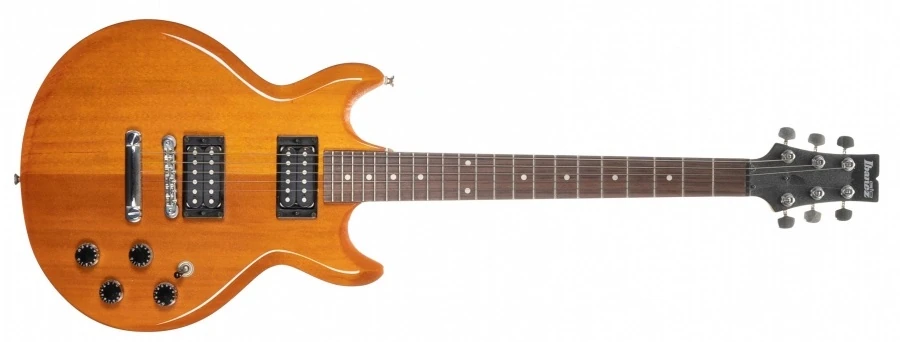

GAX70 BT
Butterscotch Transparent
GAX70 GM
Gray Metallic
GAX70 NM
Navy Metallic

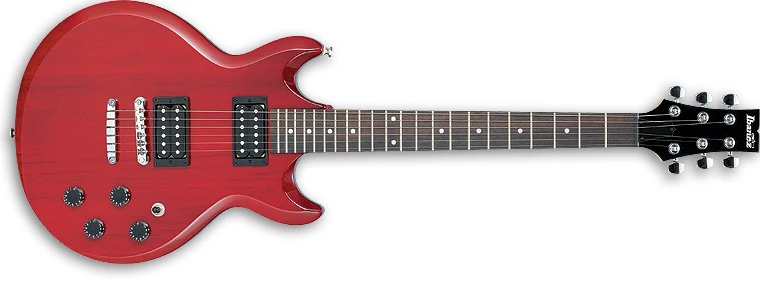

GAX70 TR
Transparent Red

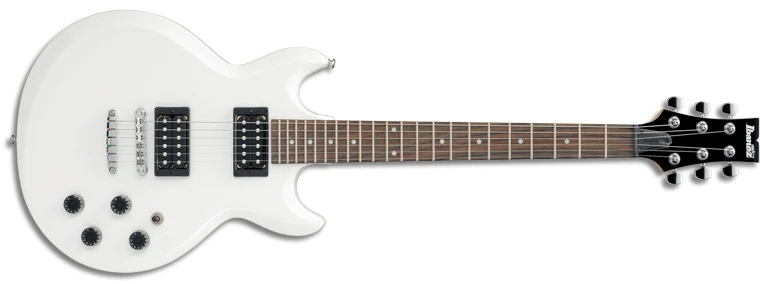

GAX70 WH
White
