VBT700 WH
VBT700 White (more images) Red copyright sprite

The VBT700, also known as the V-Blade guitar, is a flying V style solid body electric guitar model introduced by Ibanez for 2007 as part of the X series. The V shape is reminiscent of Ibanez's earlier Rocket Roll series.

The VBT700 was born out of a design for a custom V-shaped guitar that was made for Dragonforce guitarist Sam Totman, however this guitar was not marketed as a signature model. Totman got his own signature series in 2008 which was based on the Iceman body.

Features include a neck through body construction with mahogany wings attached to a maple and walnut neck with a 24-fret bound rosewood fingerboard with sharktooth position markers. Components include a Gibraltar Custom hard-tail bridge with through body string routing, and a pair of DiMarzio D Activator humbucking pickups.

The XPT700FX and DTT700 are similar guitars with X and Destroyer-shaped bodies, respectively.

The VBT700 was the only V-Blade model that was mass produced to the public and was only available in 2007.

Specifications[]

Related content: Rocket Roll series | X series | Models-icon
Specifications for VBT700
Model name: VBT700
Year(s) offered: 2007
Sold in: Worldwide
Made in: Indonesia
Finish(es): Black (BK) / White (WH)
Body
Body type:
Solid body
Body material:
Mahogany wings
Neck joint:
Neck-thru
Bridge:
Gibraltar Custom fixed
Knob style:
Knurled metal dome
Hardware color:
Black
Neck
Neck type:
Wizard II
Neck material:
5-piece maple/ walnut
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Sharktooth
Frets:
24 / jumbo
Nut:
Black plastic (43mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
DiMarzio D Activator (H)
Neck pickup:
DiMarzio D Activator (H)
Controls:
Master volume / master tone / 3-way toggle pickup selector
Output jack:
¼" stereo barrel (side mounted)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

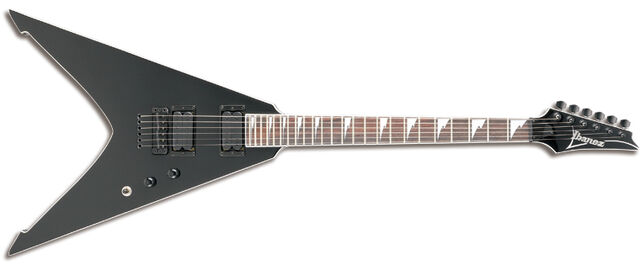

VBT700 BK
2007 Ibanez VBT700 Black Red copyright sprite
