GRX70DX BKN

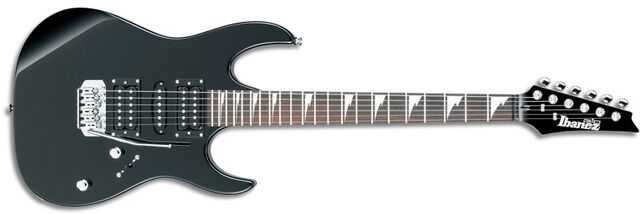

GRX70DX Black Night (more images) Red copyright sprite

The GRX70DX is an RX series solid body electric guitar model introduced by Ibanez in 2008. It is produced in China as part of the affordable GIO line.

The GRX70DX was primarily sold as part of a couple of Jumpstart packages. The GRX70DXJ (or GRX70DXJU) package included a 10-watt IBZ series amplifier with a cable, a gig bag, a strap, a tuner, some picks and an accessory pouch. The IJL70 Jumpstart Lesson Pack was the same minus the amplifier and with a voucher for online lessons.

The GRX70DX features a maple neck with a 22-fret rosewood fingerboard with sharktooth position markers. Components include a non-locking synchronized tremolo bridge and Ibanez pickups with a pair of humbuckers flanking a single-coil.

The GRX70 is a similar model from a few years prior with standard dot fretboard inlays. The GRX20DX is a related model with a pickguard and without the middle pickup.

The GRX70DX was discontinued after 2012.

Specifications[]

Related content: GIO series | RX series | Models-icon
Specifications for GRX70DX
Model name: GRX70DX
Year(s) offered: 2008–2012
Sold in: Asia / Europe / North & South America and Oceania / USA
Made in: China
Price: MSRP: IJL70 package: $US325[1]
Finish(es): Black Night (BKN) / Candy Apple (CA) / Jewel Blue (JB)
Body
Body type:
Solid body
Body material:
Nato or poplar
Neck joint:
Bolt-on
Bridge:
FAT-6 tremolo
Knob style:
Knurled metal dome (black)
Hardware color:
Chrome
Neck
Neck type:
GRX
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
Sharktooth
Frets:
22 / medium
Nut:
Black plastic (42mm)
Machine heads:
2008–2009: Ibanez covered
2010–2012: Ibanez die-cast
Electronics/ Strings
Pickup configuration:
HSH
Bridge pickup:
Ibanez STD-H2 (H)
Middle pickup:
Ibanez STD-S4 (H)
Neck pickup:
Ibanez STD-H1 (H)
Controls:
Master volume / master tone / 5-way lever pickup selector
Output jack:
¼" mono (side mounted)
String gauge (factory):
.009/.011/.016/.024/.032/.042
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Other finishes
GRX70DX CA
Candy Apple
GRX70DX JB
Jewel Blue
Jumpstart packages
2012 GRX70J package
GRX70J package contents
2012 IJL70 BK-CA
IJL70 package contents
2012 IJL70 accessories
Accessories from IJL70 package
