ART80 CA

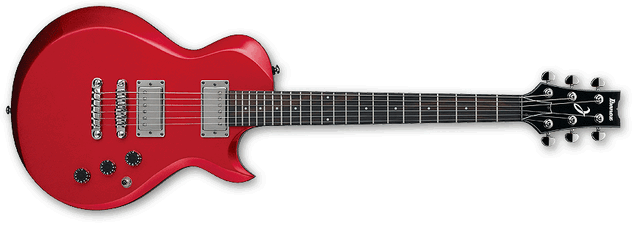

ART80 Candy Apple (more images) Red copyright sprite

The ART80 is an ART series solid body guitar model introduced by Ibanez in 2009. It was produced in China.

The ART80 features a mahogany body mated to a set-in mahogany neck with a 22-fret rosewood fingerboard with small pearloid dot position markers. Components include a Gibraltar III Tune-o-matic style bridge and a pair of Ibanez Artcore humbucking pickups.

As a more affordable ART model it has all the basic specifications of the more expensive ART models, but lacks the carved top.

The Candy Apple finish was introduced as a limited edition for 2009 but returned in the regular lineup for 2010.

The ART80 was discontinued after 2010.

Specifications[]

Related content: ART series | Artist series | Models-icon
Specifications for ART80
Model name: ART80
Year(s) offered: 2009–2010
Sold in: Asia / Europe / North & South America and Oceania
Made in: China
Finish(es): Black (BK) / Candy Apple (CA) 2009-2010 / Metallic Bronze (MBZ) 2009
Body
Body type:
Solid body
Body material:
Mahogany
Neck joint:
Set-in
Bridge:
Gibraltar III fixed
Tailpiece:
Quik Change III
Knob style:
Speed (black)
Hardware color:
Cosmo black
Neck
Neck type:
ART
Neck material:
Mahogany
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood
Fingerboard inlays:
Small pearloid dot
Frets:
22 / medium
Nut:
Black plastic (43mm)
Machine heads:
Ibanez die-cast, half moon button
Electronics
Pickup configuration:
HH
Bridge pickup:
ACH2
Neck pickup:
ACH1
Controls:
Two volumes / master tone / 3-way toggle pickup selector

Images[]

Additional finishes/ details
ART80 BK
Black
ART80 MBZ
Metallic Bronze
HH 3-way toggle
Pickup switching diagram
Controls 2VT3 inline
Control layout
