FR1620 BK

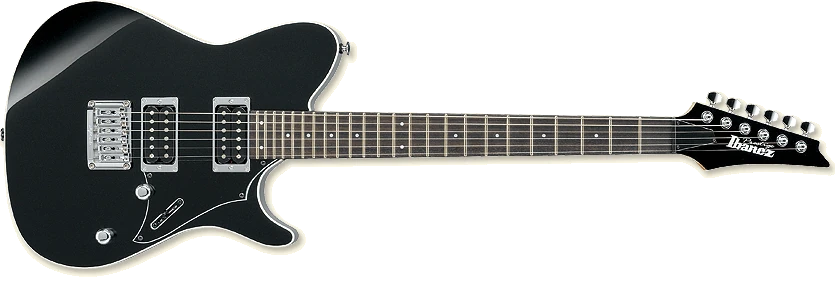

FR1620 Black (more images) Red copyright sprite

The FR1620 is an FR series solid body electric guitar model introduced by Ibanez in 2008. It was made in Japan by FujiGen as part of the upscale Prestige line.

The FR1620 was introduced along with the FR2620 as the initial models in the "Free Style Rock" FR series, with a new body shape reminiscent of the Fender Telecaster. It features an ash body with white binding bolted to a maple and walnut neck with a 24-fret rosewood fingerboard with pearloid dot position markers. Components include the new Tight-End fixed bridge, a pair of Ibanez Calm Crusher humbucking pickups mounted in chrome pickup rings, a teflon-impregnated Graph Tech TUSQ nut, a small black pickguard and Gotoh tuning machines.

For 2010, the standard Wizard neck was replaced by the new Wizard HP neck.

The FR1620 was discontinued after 2014.

Specifications

Specifications for FR1620
Year(s) produced: 2008–2014
Sold in: Worldwide
Made in: Japan
Finish(es): Black (BK) / Red Optimus (RDO) 2008–2013
Body
Body type:
Solid body
Body material:
Ash w/ binding
Neck joint:
AANJ
Bridge:
Tight-End fixed
Hardware color:
Chrome
Pickguard:
3-ply black/ white/ black
Neck
Neck type:
2008–2009: Wizard Prestige
2010–2014: Wizard HP Prestige
Neck material:
5-piece maple/ walnut
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearl dot
Frets:
24 / jumbo
Nut:
Graph Tech TUSQ XL (43mm)
Machine heads:
Gotoh SG381
Electronics
Pickup configuration:
HH
Bridge pickup:
Ibanez Calm Crusher 2 (H)
Neck pickup:
Ibanez Calm Crusher 1 (H)
Controls:
Master volume / master tone / 5-way lever

Images

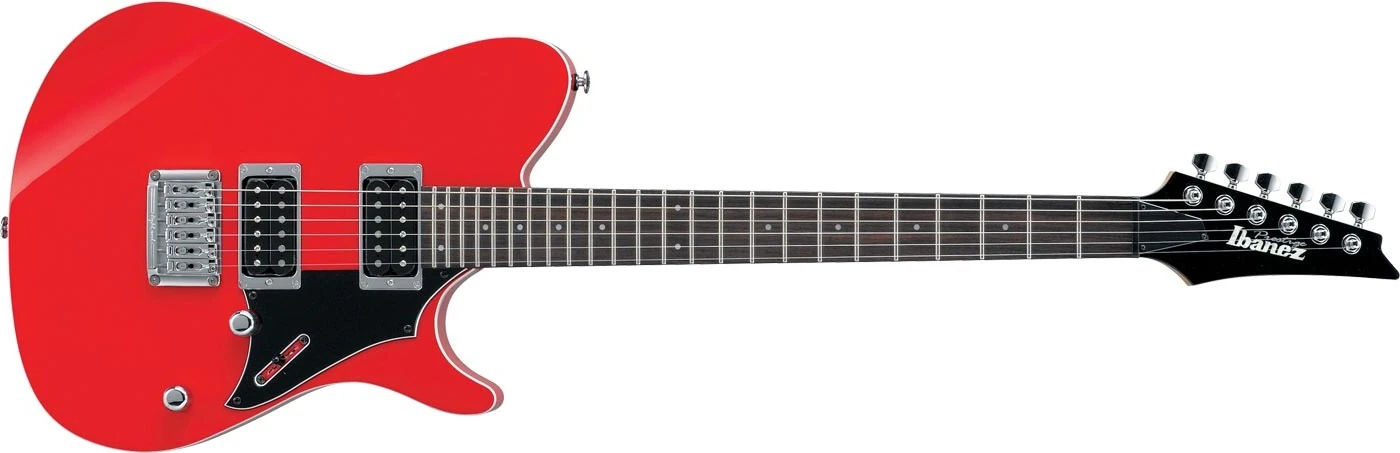

FR1620 RDO
FR1620 Red Optimus Red copyright sprite
