FGM300 GM

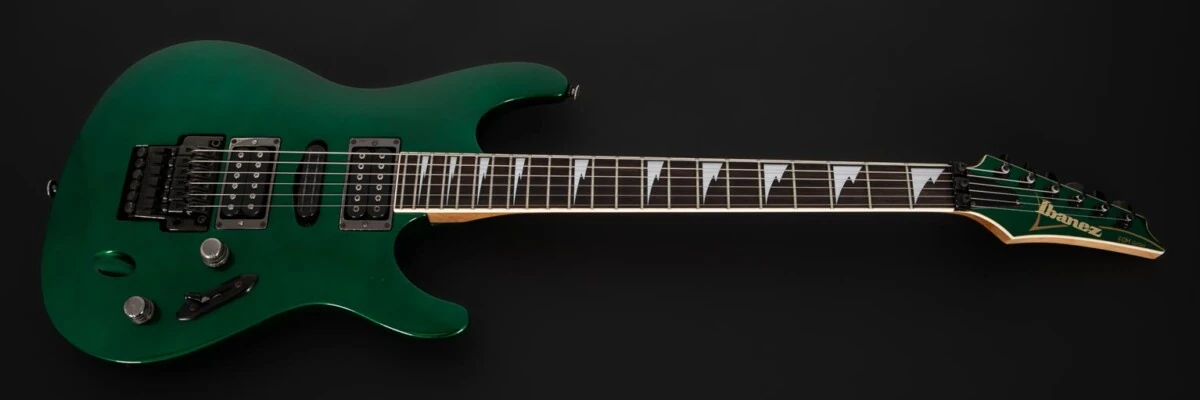

FGM300 Green Metallic (more images) Red copyright sprite

The FGM300 is a solid body electric guitar introduced by Ibanez in 1994, replacing the FGM100. It is a signature model of Australian jazz fusion guitarist Frank Gambale. It was made in Japan by FujiGen.

Like the FGM100 it replaced, the FGM300 is based on the Ibanez S series and has flush mounted pickups and a deep-set neck and tremolo which allows an extra low string set-up. Changes include new pickups and the Green Metallic finish. Both GM (Green Metallic) and MG (Metallic Green) are used in the catalogs, but are supposedly the same.

The FGM300 features a mahogany body bolted to a maple Wizard neck with a 22-fret rosewood fingerboard with binding and sharktooth position markers. Components include DiMarzio pickups with a pair of traditional humbuckers flanking a single-coil sized rails humbucker, a Lo-Pro Edge double locking tremolo bridge and Gotoh tuning machines.

The FGM300 was discontinued after 1996 in favor of the new FGM400.

Specifications

Specifications for FGM300
Model name: FGM300
Year(s) produced: 1994–1996
Sold in: Worldwide
Made in: Japan
Finish(es): Desert Sun Yellow (DY) / Green Metallic (GM) / Metallic Green (MG)
Body
Body type:
Solid body
Body material:
Mahogany
Neck joint:
AANJ
Bridge:
Lo-Pro Edge tremolo
Hardware color:
Black
Neck
Neck type:
Wizard
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Sharktooth
Frets:
22 / Jim Dunlop #6230
Nut:
Top-Lok III
Machine heads:
Gotoh SG38
Electronics
Pickup configuration:
HSH
Bridge pickup:
DiMarzio PAF Pro Lite (H)
Middle pickup:
DiMarzio Fast Track 1 (H)
Neck pickup:
DiMarzio FRED Lite (H)
Controls:
Master volume (w/ push-pull coil-tap) / master tone / 5-way lever

Images

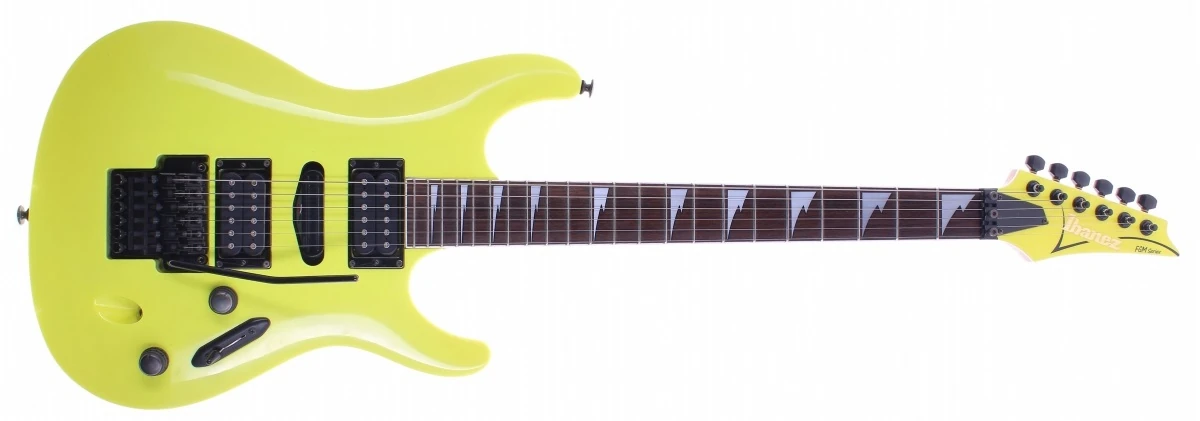

FGM300 DY
FGM300 Desert Sun Yellow Red copyright sprite
